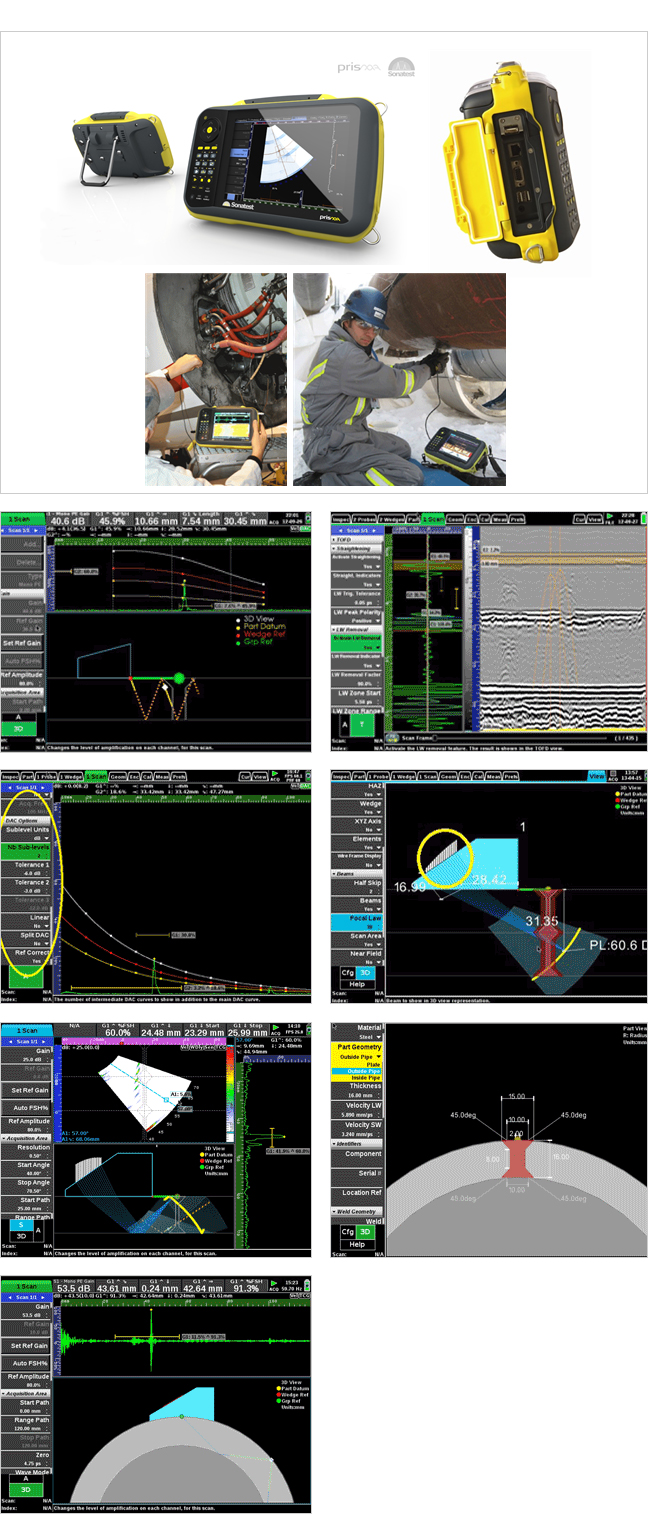

| PA UT |
| Pulsers |
| Configuration |
|
16:16 or 16:64 |
| Test Mode |
|
Pulse-Echo, Transmit/Receive |
| Transducer Socket |
|
I-PEX |
| Pulse Voltage |
|
-25 V to - 75 V (in steps of 5 V) |
| PRF |
|
3 Hz to 5 kHz |
| Pulse Shape |
|
Negative Square Wave (with ActiveEdge) |
| Pulse Width |
|
Adjustable: 25ns to 2000ns (2.5 ns resolution) |
| Edge Time |
|
15 ns in 50 Ω load @200 V |
| Output Impedance |
|
10 Ω |
| Synchronisation |
|
Encoder or free-running (time based) |
| Focus Delay Range |
|
0 to 10 μs (2.5 ns resolution) |
| |
| Receivers |
| Gain Range |
|
0 to 80 dB (0.1 dB steps), Analog Gain |
| Max Input Voltage |
|
200 mVp-p |
| Input Impedance |
|
50 Ω |
| Bandwidth |
|
200 kHz to 14 MHz |
| Analog Filters |
|
3 |
| Digital Filters |
|
10 |
| Rectification |
|
Full wave, positive, negative, none (RF) |
| Single Enhancement |
|
Digital filters, Smoothing |
| Focus Delay Range |
|
16ns (interpolated to 3.8 ns) |
| |
| Data Acquisition |
| Architecture |
|
616 Channels, Full digital Delay & Sum |
| Digitizer Resolution |
|
12 bit DAC |
| Amplitude 측정 |
|
[0% to 100%] or [0% to 150%] FSH |
| Data Processing |
|
16 bits/sample |
| Data Recording |
|
Full raw data recording |
| File Size |
|
up to 3 GB |
| Digitizing Frequency |
|
65 MHz |
| Focal Laws |
|
128 |
| Focussing Type |
|
Constant Depth, Constant Path, Constant Offset |
| Max A-Scan Length |
|
4096 samples |
| Sub-Sampling |
|
1:1 to 1:128 |
| Reference |
|
Initial Pulse or Gate/IFT supported |
| Trigger Sync. |
|
Encoder or Internal |
| |
| Scan & Views |
| Scans 종류 |
|
S-Scan & L-Scan |
| Scans 표시 수 |
|
1 (with up to 4 extracted A-Scans) |
| Views |
|
A, B, C, L, S-Scan plus End & Top view |
| Colour Maps |
|
up to 10 |
| Number of Layouts |
|
17 |
| |
| Cursors |
| Cursor Types |
|
Cartesian, Extraction Box, Angular |
| Measurements |
|
Path Length, Depth, Surface Distance, DAC, AWS |
| |
| DAC & TCG |
| points |
|
16 |
| DAC |
|
1 with 3 "sub DACs" per focal Law |
| TCG points |
|
16 |
| Gain Range |
|
40 dB |
| Max Gain Slope |
|
50 dB/μs |
| |
| Gates |
| A-Scan Gates |
|
4 gates per A-Scan (3 extracted A-Scans per S/L-Scan) |
| Gate Trigger |
|
Flank/Peak |
| S/L-Scan |
|
1 Extraction Box |
| LED 알람 |
|
1 (sync on all gates & DACs) |
| A-Scan 측정 |
|
Peak & Flank (FSH, dB, D, BPL, SD) and Echo-to-Echo |
| |
| Interface & Reporting |
| Help System |
|
Active parameter description and Optimisation Tips |
| Configuration Validation |
|
Dynamic Help with Parameter Genius |
| Wizards |
|
Configuration, Velocity and Zero, Wedge Delay, Sensitivity,TCG, DAC, DGS,
Element Activation, Encoder |
| Languages (dynamic) |
|
English, German, French, Spanish, Russian, Chinese |
| Report Generation |
|
PDF File (includes scans, setup, measurements, etc.), PNG screen capture,
Customer Logo |
| PDF Reader |
|
Allows viewing any uploaded PDF file |
| Inputs & Outputs |
|
|
| Encoder |
|
1 or 2 axis encoding (quadrature input) |
| Digital Inputs |
|
2 input lines (5V TTL) |
| Digital Outputs |
|
2 Output lines (5V TTL, 20 mA) for alarm or other external control |
| Analogue Outputs |
|
2 Analogue Outputlines (0-2V) |
| Power Output |
|
5V, 350 mA, current limited |
| |
| Enclosure |
| Dimensions (HxWxD) |
|
205mm x 300mm x 90 mm |
| Weight |
|
3.5 kg (with battery) |
| Display Size |
|
8.4 inch (diagonal) |
| Display Resolution |
|
800 x 600 |
| Display Colours |
|
260k (65535 colours for scan palettes) |
| Display Type |
|
TFT LCD, 450 Cd/m2, with 2% reflectivity |
| USB ports |
|
3 USB Master ports |
| Ethernet |
|
100 Mbps |
| |
| Battery Power Supply |
| Battery Type & 수량 |
|
내부 체결 Li-ion 1 개 |
| Operation |
|
On battery or on External power (DC Power Pack) |
| Battery 충전기 |
|
Recharge in unit (with unit On or OFF) - External Battery Charger |
| Battery 사용 시간 |
|
Typical: 7 hours in UT mode, 6 hours in PA mode |
| |
| Environmental |
| 방수 규격 |
|
Designed to meet IP66 |
| 사용 온도 |
|
-10°C to 45°C |
| 보관 온도 |
|
-25°C to 60°C |
|
