| PA block 사양 |

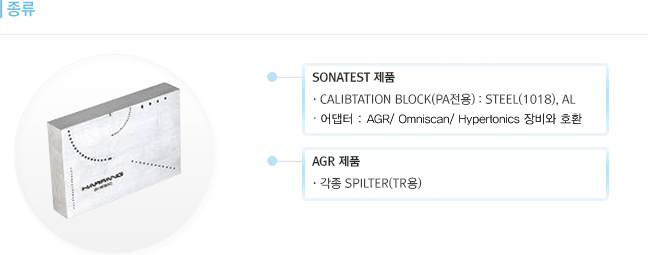

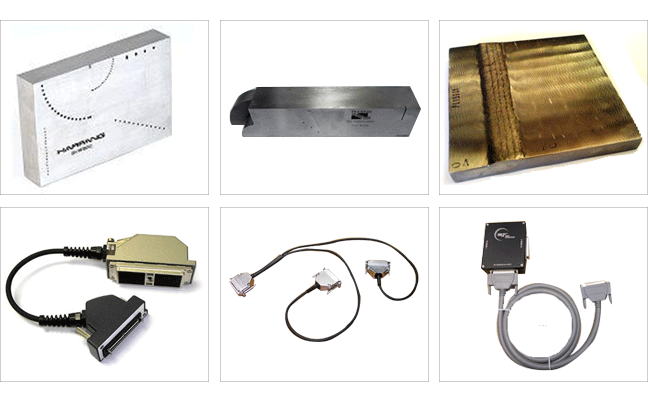

TST-0007 Phased Array Test Blocks(Carbon steel/AL) |
 |
|
Phased array Test Block, 150 x 100 x 25mm, With 4 series of side
drilled holes at 25mm radius, 50mm radius, 10mm constant depth
and one at 30/60 degrees, Plus 4 additional holes at 15, 30, 45
and 60 degrees from surface |
| |
|
| 149340 |
 |
|
Demonstration / Training weld sample. Lightweight (5 kg)
180 x 180 x 20 mm, Carbon steel, with offset V-weld containing
3 typical defects, supplied with as built drawings (Sonaspection) |
| |
|
| TST-0008 |
 |
|
Phased array Test Block, Aluminium Alloy 150 x 100 x 25mm,
With 4 series of side drilled holes at 25mm radius, 50mm radius,
10mm constant depth and one at 30/60 degrees, Plus 4 additional
holes at 15, 30, 45 and 60 degrees from surface |
