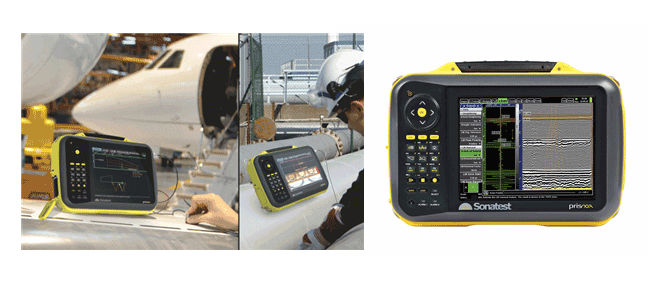

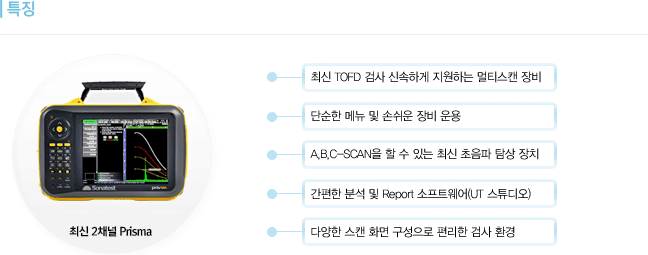

| Conventional UT |
| 펄 서 |
| Configuration |
|
2 채널 UT |
| Test Mode |
|
Pulse-Echo, Transmit/Receive and TOFD |
| Transducer Socket |
|
LEMO 1 or BNC |
| Pulse Voltage |
|
100 V to 450 V (in steps of 10 V) |
| PRF |
|
3 Hz to 5000 Hz |
| Pulse Shape |
|
Negative Square Wave (with ActiveEdge) |
| Pulse Width |
|
Adjustable: 25ns to 2000ns (2.5 ns resolution) |
| Edge Time |
|
15 ns in 50 Ω load @200 V |
| Output Impedance |
|
5 Ω |
| Synchronisation |
|
Encoder or free-running (time based) |
| Damping Resistor |
|
Selectable: 50 Ω or 400 Ω |
| |
| Receivers |
| Gain Range |
|
120 dB (-40 dB to 80 dB), Analog Gain |
| Max Input Voltage |
|
25 Vp-p |
| Input Impedance |
|
1 kΩ (pitch and catch) |
| Bandwidth |
|
200 kHz to 22MHz (-3 dB) |
| Analog Filters |
|
4 |
| Digital Filters |
|
10 |
| Rectification |
|
Full wave, positive, negative, none (RF) |
| Single Enhancement |
|
Digital filters, Averaging, Smoothing, Contouring |
| |
| Data Acquisition |
| Architecture |
|
2 channels, true 200 MHz sampling rate |
| Digitizer Resolution |
|
12 bit DAC |
| Amplitude measurement |
|
[0% to 100%] or [0% to 150%] FSH |
| Data Processing |
|
16 bits/sample |
| Data Recording |
|
Full raw data recording |
| File Size |
|
up to 3 GB |
| Digitizing Frequency |
|
50 MHz, 100 MHz, 200 MHz |
| Max A-Scan Length |
|
8192 samples |
| Sub-Sampling |
|
1:1 to 1:128 |
| Reference |
|
Initial Pulse or Gate/IFT supported |
| Trigger Sync. |
|
Encoder or Internal |
| |
| Scan & Views |
| Supported Scans |
|
A-Scan & TOFD |
| Number of Scans |
|
up to 4 |
| Views |
|
A, B, C-Scan plus TOFD |
| Colour Maps |
|
up to 10 |
| Number of Layouts |
|
12 |
| |
| Cursors |
| Cursor Types |
|
Cartesian, Hyperbolic (TOFD) |
| Measurements |
|
Path Length, Depth, Surface Distance, DAC, AWS, DGS |
| points |
|
16 |
| DAC |
|
1 with 3 “sub DACs” |
| TCG points |
|
16 |
| Gain Range |
|
60 dB |
| Max Gain Slope |
|
60 dB/μs |
| |
| Gates |
| A-Scan Gates |
|
4 gates per A-Scan |
| Gate Trigger |
|
Flank/Peak |
| Alarm LED |
|
1 (sync on all gates & DACs) |
| Measurements(A-Scan) |
|
Peak & Flank (FSH, dB, D, BPL, SD) and Echo-to-Echo |
| |
| Interface & Reporting |
| Help System |
|
Active parameter description and Optimisation Tips |
| Configuration Validation |
|
Dynamic Help with Parameter Genius |
| Wizards |
|
Configuration, Velocity and Zero, Wedge Delay, Sensitivity, TCG, DAC, DGS, Element Activation, Encoder |
| Languages (dynamic) |
|
English, German, French, Spanish, Russian, Chinese |
| Report Generation |
|
PDF File (includes scans, setup, measurements, etc.), PNG screen capture, Customer Logo |
| PDF Reader |
|
Allows viewing any uploaded PDF file |
| |
| Inputs & Outputs |
| Encoder |
|
1 or 2 axis encoding (quadrature input) |
| Digital Inputs |
|
2 input lines (5V TTL) |
| Digital Outputs |
|
2 Output lines (5V TTL, 20 mA) for alarm or other external control |
| Analogue Outputs |
|
2 Analogue Output lines (0-2V) |
| Power Output |
|
5V, 350 mA, current limited |
| |
| Enclosure |
| Dimensions (HxWxD) |
|
205mm x 300mm x 90 mm |
| Weight |
|
3.5 kg (with battery) |
| Display Size |
|
8.4 inch (diagonal) |
| Display Resolution |
|
800 x 600 |
| Display Colours |
|
260k (65535 colours for scan palettes) |
| Display Type |
|
TFT LCD, 450 Cd/m2, with 2% reflectivity |
| USB ports |
|
3 USB Master ports |
| Ethernet |
|
100 Mbps |
| |
| Battery, Power Supply |
| Battery Type 및 수량 |
|
내부 장치 Li-ion Battery 1 EA |
| Operation |
|
On battery or on External power (DC Power Pack) |
| Battery 충전 |
|
메인 장비에서 충전, Battery Charger분리 충전. |
| Battery 수명 |
|
1) UT mode : 7시간 사용.
2) PA mode: 6시간 사용. |
| |
| Environmental |
| 방수 규격 |
|
IP66 규격 |
| 사용 온도 |
|
-10˚C to 45˚C |
| 보관 온도 |
|
-25˚C to 60˚C |
