초음파 두께 측정기		HOME > PRODUCTS > UT > 초음파 두께 측정기

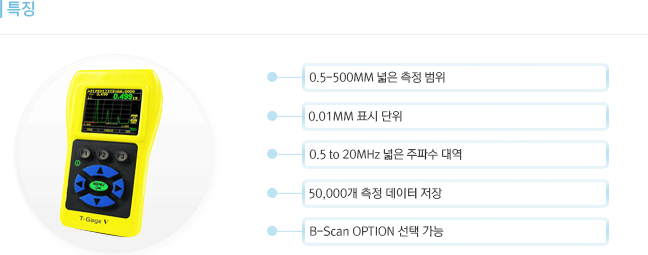

T-Gage V

T-GAGE V 시리즈는 특별히 철 구조물의 두께를 측정하기 위해 설계되었습니다. T-GAGE VB, T-GAGE V와 T-GAGE VDL 3가지 모델로 분류 됩니다. B 스캔 기능을 T-GAGE V & VDL에 추가 할 수 있습니다.

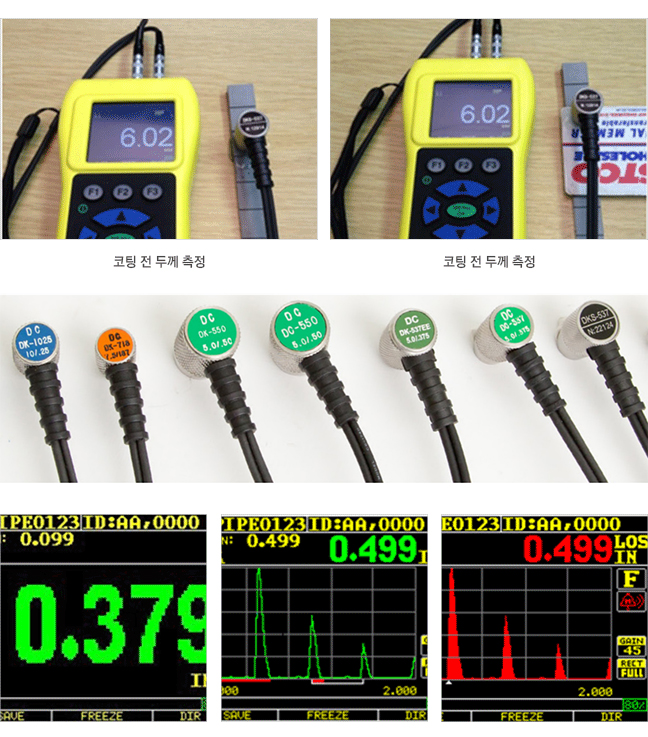

사진

사양

첨부

사 양
모델		T-GAGE VB (Basic)		T-GAGE V (Mono)		T-GAGE VDL Colour)
Pulse Echo - No Coating		0.5-500		0.5-500		0.5-500
Echo - Echo		x		0.6-125		0.6-125
Measurement Resolution		0.01		0.01		0.01
Velocity Range m/s		1016-15240		1016-15240		1016-15240
Frequency Range		0.5 to 20MHz		0.5 to 20MHz		0.5 to 20MHz
Gain Control		AGE only		Lo/Med/Hi		Lo/Med/Hi
Units		English/ Metric		English/ Metric		English/ Metric
Data Logging		x		50,000 (O)		50,000 (O)
A-Scan		x		OPTION		OPTION
Alarms		x		LED/Aud/Vib		LED/Aud/Vib
Update Rate		4/20 (scan)		4/20 (scan)		4/20 (scan)
Diff Mode		x		OPTION		OPTION
Display size		10mm		10mm		10mm
Display Resolution		128 x 64 pixels		128 x 64 pixels		220 x 170 pixels
B-Scan (time)		x		OPTION		OPTION
B-Scan (encoded)		x		OPTION		OPTION
Case size (mm)		76 x 127 x 32		76 x 127 x 32		76 x 127 x 32
Weight		230g		230g		230g
Batteries		2 x AA		2 x AA		2 x AA
Battery Life		200 hr (40 bklt)		200 hr (40 bklt)		200 hr (40 bklt)
Backlight		off/On/Auto		off/On/Auto		off/On/Auto
Temperature Range		-20 to 50℃		-20 to 50℃		-20 to 50℃
IP Rating (approx)		IP54		IP54		IP54
Warranty		2 yrs		2 yrs		2 yrs
