CR (Computed Radiography)		HOME > PRODUCTS > RT > CR

Dynamlx HR²

CR은 기존의 FILM/SCREEN SYSTEM 대신에 휘진성 형광체 물질이 도포된 IP (Image Plate)를 사용해 촬영하며, X-RAY를 영상처리를 한 후, 이 DIGITAL화 된 영상신호를 모니터로 결함을 판독 후, Disk에 저장, 또는 전용 필름 Printer로 출력하는 SYSTEM이다.

적용

사양

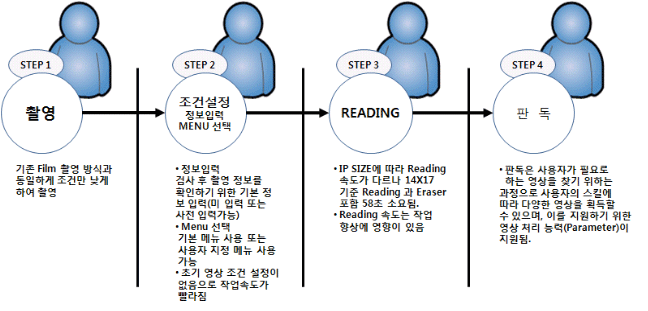

검사순서

첨부

동영상

Dynamlx HR²
IP Image Reader	Dynamlx HR²
Reading density	25㎛, 50㎛, 100㎛, 200㎛
Reading gray scale	14 bits/pixel
Dimensions(W x D x H)	600 x 660 x 490mm (24 x 26 x 19in.)
Weight	58kg (127lb)
Power supply	100-240 V AC, 50/60Hz, 400 VA or less
Operation condition	15˝C-30˝C, 15%-80%RH (No dew condensation)
IP tray	Hand-held type
Tool for using special out IPs	Type S Custom order Type F Custom order

Dynamlx HR² 50 system
IP Image Reader	Dynamlx HR²
	Reading density
	Reading gray scale
Dimensions(W x D x H)	600 x 660 x 490mm (24 x 26 x 19in.)
Weight	58kg (127lb)
Power supply	100-240 V AC, 50/60Hz, 400 VA or less
Operation condition	15˝C-30˝C, 15%-80%RH (No dew condensation)
IP tray	Hand-held type
Tool for using special out IPs	Type S Custom order Type F Custom order
	Dynamlx HR² 50 system does not support 25㎛ pitch reading

Imaging Plate
Pixed-size IP	ST-VI (Type CC Cassette)	35.4 x 43.0cm (14 x 17 in.) 18 x 24cm (7.1 x 9.4 in.) 24 x 30cm (9.4 x 11.8 in.) 15 x 30cm (5.9 x 11.8 in.)
Pixed-size IP		UR-1 (Type UR Cassette)
Strip-form IP	6 x 40cm (2.4 x 15.7 in.) Note: Consult with our sales representaive for other sizes.
Long IP	7 x 152cm (2.8 x 59.8 in.) Note: Consult with our sales representaive for other sizes.

Image Viewer/Measurement Software Dynamix VU
Software	Dynamlx VU Console Acquires images from the image reader and adjusts image quality.
	Dynamlx VU Viewer Enables assessment of image quality and determination of defects by using various measurement tools.
	Dynamlx VU Server Stores data and enables data management.
Client PC	CPU Intel® core™ i7 CPU at 2.6 GHz or greater OS Windows®7 Professional 64 bit Service Pack 1 English
Server PC	CPU Intel Xeon® B3-1225 at 3.10 GHz or greater OS Windows Server 2008 R2 Service Pack 1 English
Display	Standard viewer: 21.2 inch 3M high resolution color LCD monitor Recommend model EIZO® Rediforce RX340 Resolution 1536 x 2048 pixels
Display	High grade viewer: 21.3 inch 5M high resolution monochrome LCD monitor Recommend model EIZO® Rediforce GX530 Resolution 2048 x 2560 pixels
