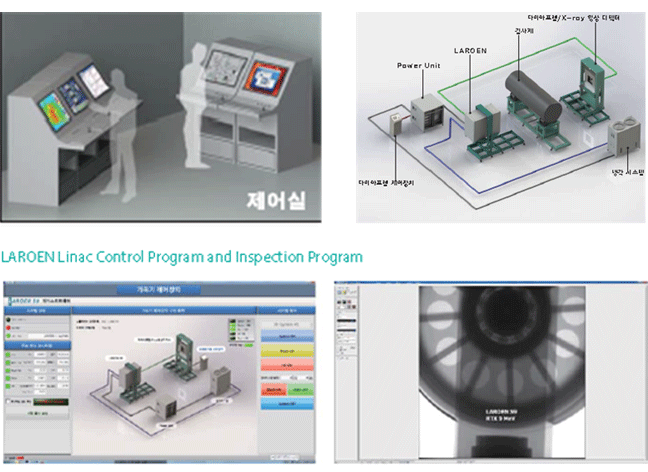

| MV X-Ray DR System |
| High Energy Linac |
|
S9 |
S6 |
| Head Dimensions |
|
< W:900xD:1900xH:1300mm |
< W:850xD:1700xH:1300 |
| Head Weight(TON) |
|
<1.5 |
<1.5 |
| X-Ray Nominal Energy |
|
9 MeV |
6 MeV |
| X-Ray Max. Dose Rate |
|
30 Gy/min@1m |
8 Gy/min@1m |
| X-ray Field Size |
|
TBD |
TBD |
| Focal Spot Size |
|
<2.0mm |
<2.0mm |
Radiographic
Quallity
(steel) |
|
During Steel-based lm shooting,
min.80mm - max. 380mm. |
During Steel-based lm shooting,
min.50mm - max. 250mm. |
|
During Steel-based DR shooting,
-max.260mm |
During Steel-based DR shooting,
-max.210mm |
|
System requires image quality of at
least ASTM E94 2-2T |
System image quality
of at least ASTM E94 2-2T |
| DR 픽셀 수 |
|
2048 x 2048 |
2048 x 2048 |
| Control Method |
|
Touch Pad or PC |
Touch Pad or PC |
| Cooling System |
|
Water Cooling |
Water Cooling |
| |
|
The leakage radiation is measured along the horizontal axis at 1 meter from
the beam cenerline at angles 60° and greater, outside the primary beam. |
|
|
Warning Alarms, emergency breaker, remote interlock, warning light,
warm-up and power status display, error information, and rebooting
(Self-sheilding, equipment) |

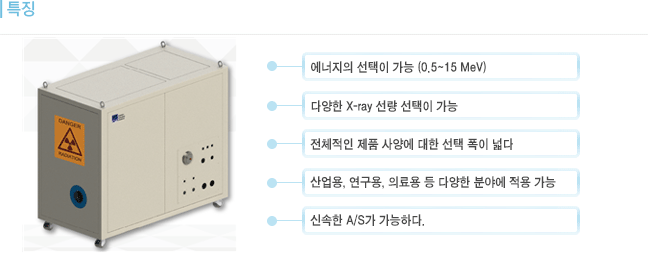

| LINAC for X-ray Generator / Line Up |
| Model |
|
Energy(MeV) |
Dose(Gy/min@1m) |
| LAROEN S1 |
|
1 |
1 |
| LAROEN S3 |
|
3 |
3 |
| LAROEN S6 |
|
6 |
6 |
| LAROEN S9 |
|
9 |
9 |
