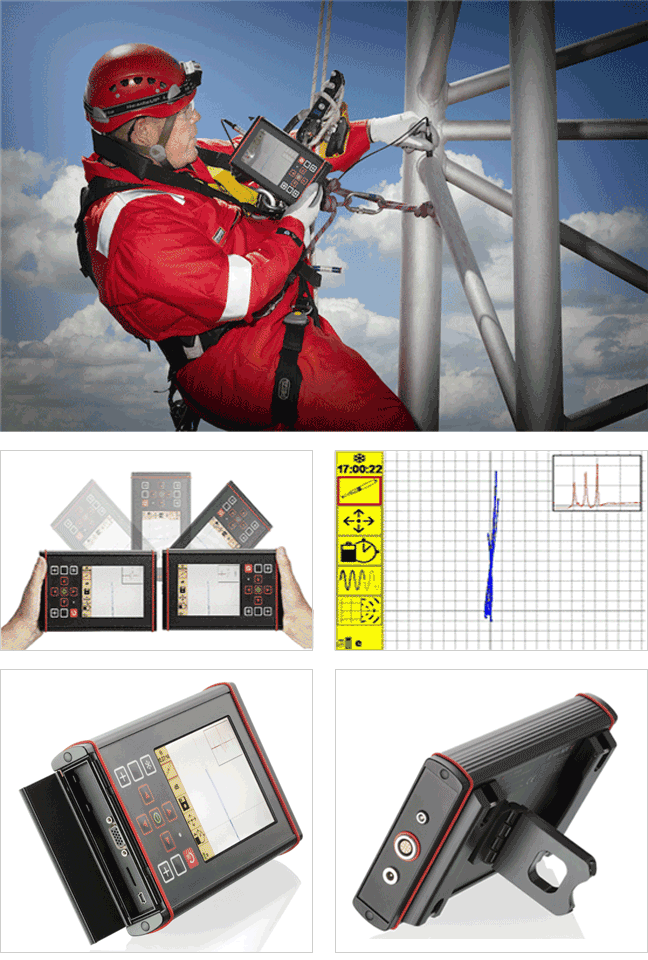

| Aero/Weld Check |
Probe
Connection |
|
|
|
12 Way Lemo 2b (Absolute, Bridge and Reflection) and Lemo 00
(for single element absolute probes). |
| Frequency |
|
Single Frequency |
|
20Hz – 20.00 MHz with range variable resolution. |
| Gain |
|
Overall |
|
-18 to + 100 dB, 0.1, 1 and 6dB steps |
| |
|
Input |
|
0dB or 12dB |
| |
|
Drive |
|
0dB to 6dB steps (0dB reference 1mW into 50 ohm) |
| |
|
Max X/Y Ratio |
|
+/-100.0 dB |
| Phase |
|
Range |
|
0-359°, 0.1° steps |
| |
|
Auto Phase |
|
Allows phase angle to be automatically set to a pre set angle |
| Filters |
|
Normal High Pass |
|
DC to 2kHz or test frequency, which ever is the lower in 1 Hz steps.
Plus variable adaptive balance drift compensation (0.01 - 0.5 Hz) |
| |
|
Normal Low Pass |
|
5 to 2kHz or 1¼ test frequency, which ever is the lower in 1 Hz steps. |
| Balance |
|
Manual |
|
14 internal balance loads; 2.2µH, 5.0µH, 6.0µH, 6.5µH, 7.0µH, 7.5µH,
8.2µH, 12µH, 15µH, 18µH, 22µH, 30µH, 47µH, 82µH |
| Alarms |
|
Box |
|
Fully configurable, Freeze, Tone or visual. |
| |
|
Sector |
|
Fully configurable, Freeze, Tone or visual. |
| |
|
Output |
|
Open collector transistor (50v dc at 10mA max) available on
12 way lemo. |
| Display |
|
Type |
|
18 bit Colour, daylight readable, 5.7” screen. |
| |
|
Viewable Area
(Horizontal x Vertical) |
|
115.2 x 86.4mm |
| |
|
Resolution (pixels) |
|
640 x 480 |
| |
|
Colour Schemes |
|
User configurable including High Contrast |
| |
|
Configurable screen |
|
Full Screen, Single or Dual screen with variable size and location and
function e.g. Screen – Spot and Timebase |
| |
|
Display Modes |
|
Spot, Time base (0.1-20 seconds * 1-200 sweeps), Waterfall and
Meter None, Grid (4 sizes 5, 10,15 and 20% FSH), Polar(4 sizes 5, 10,
15 and 20% FSH) |
| |
|
Graticules |
|
Trace Position: +-/50% |
| |
|
Offset Digital Spot
Position Readout |
|
Display in X,Y or R,θ |
Internal
Data
Storage |
|
Setup Storage |
|
microSD up to 2GB, holding over 500 saves. |
| |
|
Stored Traces |
|
microSD up to 2GB, holding over 500 saves. |
| Outputs |
|
PC Connectivity |
|
USB (Full PC remote control plus Real Time data) |
| |
|
Digital volt free alarm |
|
On Lemo 12 way |
| |
|
VGA |
|
Full 15 way VGA output |
| Languages |
|
|
|
Initially English, French, German, Spanish, Italian, Portuguese,
Czech, Polish. Others to follow. |
| Power |
|
External |
|
100-240 v 50-60Hz 30 Watts |
| |
|
Battery |
|
Internal 7.2v @ 2900 mAh 20.88Wh |
| |
|
Running Time |
|
Weld Probe plus 100% backlight over 8.5 hrs. up to 10.5 hrs.
with 50% backlight. |
| |
|
Charging Time |
|
2.5 hrs. charge time, Simultaneous charge and operation. |
| Physical |
|
Weight including
Internal Battery |
|
1.2 kg, 2.6 lbs. |
| |
|
Size (width x height
x depth) |
|
223 x 141 x 50 mm / 8.8 x 5.6 x 2.0 inches |
| |
|
Material |
|
Aluminium alloy Mg Si 0.5 powder-coated |
| |
|
Operating Temp |
|
0 - 50 °C |
| |
|
Storage Temp |
|
-10 - 70 °C |
| |
|
IP Rating |
|
54 |
