| 사 양 |
| 주파수 범위 |
|
50Hz - 8MHz |
| 디스플레이 |
|
LCD (240×320mm) pixels (115×57mm) |
| 메인 GAIN |
|
0dB - 99.9dB OVERALL IN 0.1 dB 스텁 |

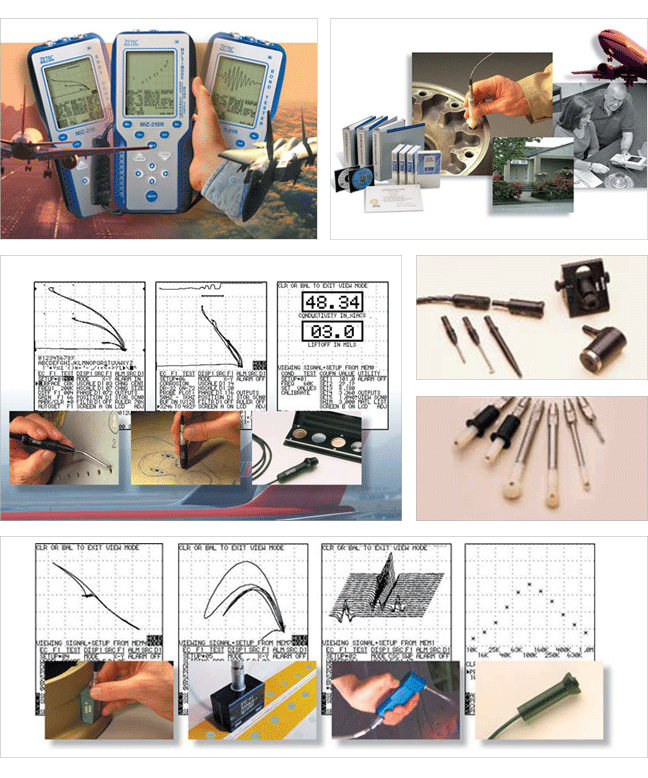

| 디스플레이 Modes |
|
XY impedance Planc , Bar Graph, Triggered Sweep, Auto Sweep Fast,
c-scan (Plotted waterfall) 2-signal display can show tow signals side-by side in sweep |
| Scanner Support |
|
Supports HS Scanner Supports for other manufacturers Scanners is available,
consult Zetec for details |
| 알람 |
|
ALARMS OPTIONS ARE : + AND - LEVELS,
SECTOR AND BOX GATE FLASHING LED'S, INTERNAL SOUNDER. |
| 각도 |
|
0 - 359.9 0.1, 1OR 10 스텁 |
| 메모리 |
|
50개 (모든 세팅 데이터 포함) |
| PROBE |
|
모든기종의 프로브와 호환 가능 |
| BACKLIGHT |
|
LOW, HIGH, OFF 가능 |
| 출 력 |
|
STANDARD RS232 VIA 5 WAY LEMO |
| Remote Connector |
|
(serial port) for PC interface, support Screen Capture to PC ,
Store or recll Test configurations to PC |
| LANGUAGES |
|
ENGLISH, FRENCH, GERMAN, SPANISH, PORTUGUESE |
| WEIGHT |
|
1.7Kg INCLUDING BATTERIES. |
| DIMENSIONS |
|
60W×130H×280L (mm) |
| Conductivity Testing |
| Meter Sorting |
| Autoset Pase /Autoste Gain |
| Batteries intemal, erchargeable, memory-free long-life meter hydride (NiMH) |
| Probe Configuration Single, Differential , Reflection, Differential Driver-Pickup |
