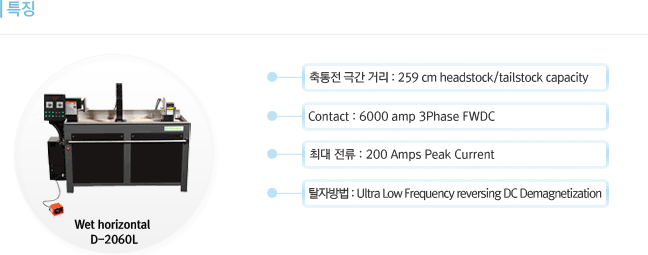

Wet horizontal D-2060L |
| 전 류 |
|

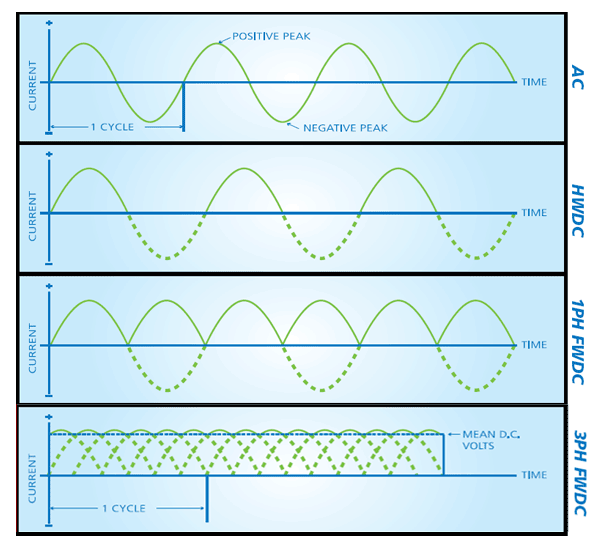

6000 amp 3Phase FWDC magnetizing current capability at contacts |
| 탈 자 |
|
Ultra Low Frequency reversing DC Demagnetization |
| Duty Cycle |
|
0.5 seconds on, 10 Seconds off (5% with Maximum of 5 seconds)
|
| |
|
259 cm headstock/tailstock capacity |
| |
|
variable current control |
| 전 원 |
|
230 Volts ,50 or 60 hertz, three phase power |
| 최대 전류 |
|
200 Amps Peak Current |
| Recommended fuse |
|
125Amps, Slow Blow
|
| |
|
Recommended 32 Gallon Tank Fluid Capacity |
| |
|
Minimum 40 PSI with 5 CFM capability |
| 크 기 |
|
346 cm x 104 cm Foot Print, allow 61 cm per side for ventilation
|
| |
|
Manual is available on CD sent with the unit |
