| 사 양 |
Maker:Sonatest (UK) |
| Device type |
|
Coating thickness gauge with integrated probe |
| Gauge Versions |
|
Sonacoat II F for iron/steel |
| |
|
Sonacoat IIFN for all metals (dual gauge) |
| |
|
Sonacoat II F-10 for steel to 10mm |
| Measuringprinciple |
|

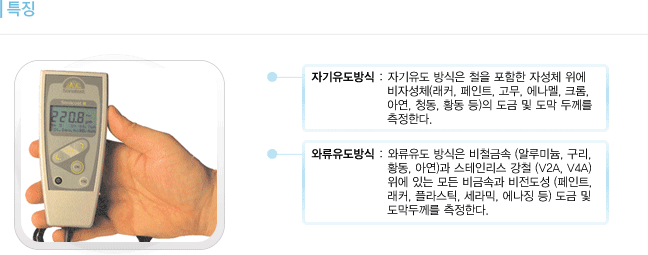

Magnetic induction method (F) , Eddy current method (N) |
| Measuring range |
|
0 - 1,500 μms |
| Tolerance |
|
± (1 μm +1% of reading) |
| Resolution |
|
0.1 μm or < 0.2‰of reading |
| Display |
|
4-digit display:digit height 10 mm |
| |
|
selectable between μm back-light |
| Confirmation of reading |
|
Audible 'beep' |
| Minimum measuring area |
|
5 mm x 5 mm / 0.2" x 0.2" |
| Minimum curvature radius |
|
convex:3 mm / 0.12", concave:5 mm / 0.2" |
| Minimum substrate thickness |
|
Iron/steel:0.5 mm. non-ferrous metals:50um |
| Calibration |
|
Factory calibration, zero calibration, foil calibration |
| Statistics |
|
Number of readings, mean value, standard deviation,
maximum and minimum reading of max. 10,000 readings |
| Data memory |
|
Max. 80 readings, available singly; statistical values |
| Limits |
|
Adjustable with acoustic alarm system |
| Interface |
|
Infrared |
| Surface temperature |
|
A-15 °C to 60 °C / 5 °F to 140 °F |
| Operating temperature |
|
0 °C to 50 °C / 32 °F to 122 °F; |
| Storage temperature |
|
-20 °C to 60 °C / -4 °F to 140 °F / |
| Power supply |
|
2 x AA 1.5 V |
| Housing/keypad |
|
Protection class IP52 |
| Dimensions |
|
Gauge:140 mm x 62 mm x 30 mm / 5.6" x 2.5"x 1.2" |
| |
|
Probe:14 mm dia. x 83 mm / 0.56" dia. x 3.3" |
| Weight (incl. batteries) |
|
Probe:14 mm dia. x 83 mm / 0.56" dia. x 3.3", 200 g |
| Standards |
|
DIN EN ISO, ASTM, BS |
